Automatic Multi-Head Double-Sided Tape Pasting Machine for E-Commerce Shipping Boxes

E-commerce packaging has made carton sealing a high-frequency production task. Every day, fulfillment centers and packaging plants handle large numbers of shipping boxes, mailers, and document bags, often with several sizes and packaging specifications running through the same production area. When tape application is inconsistent, the result can be uneven sealing, production interruptions, and more manual rework. A reliable double-sided tape pasting machine can improve both application consistency and line efficiency.

Why Manual Tape Application Becomes a Bottleneck

Manual and semi-automatic tape application is practical for small production runs, but the limitations become more visible as order volume increases. Operators must repeatedly position the carton or sheet, align the tape, press it into place, and prepare the next piece. Small differences in positioning can accumulate over a long production shift.

The problem becomes more obvious when a packaging operation handles multiple carton formats. E-commerce orders rarely remain limited to one fixed size, so packaging lines need to process different shipping boxes, envelope-style mailers, and document packaging. Frequent manual adjustments slow production and make consistent tape placement more difficult.

Labor availability is another consideration. Repetitive tape application requires continuous operator attention, and maintaining the same positioning accuracy throughout a long shift can be difficult. For higher-volume production, automating the adhesive application stage can reduce dependence on manual handling while creating a more repeatable process.

Why Double-Sided Tape Fits E-Commerce Packaging

Double-sided tape is well suited to applications that require clean, immediate adhesive placement. The adhesive is supplied on a continuous tape roll and can be applied directly to the designated area of the carton flap or packaging material.

For shipping boxes, envelope bags, and document mailers, the main advantage is controlled and repeatable adhesive placement. Instead of applying adhesive by hand in separate sections, a double-sided tape pasting machine can place continuous strips at defined positions. This helps standardize the sealing process from one piece to the next.

Tape width can also be selected according to the packaging structure. Narrower tape can be suitable for smaller mailers or limited adhesive areas, while wider tape can provide a larger bonding area on carton flaps. The appropriate tape specification still depends on the packaging material, adhesive type, and actual sealing requirement, so compatibility should be confirmed before production.

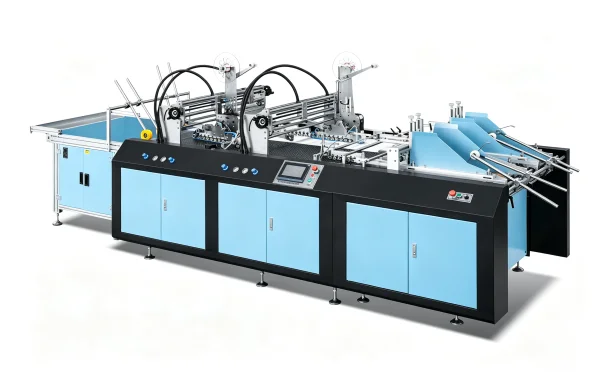

How an Automatic Multi-Head Double-Sided Tape Pasting Machine Improves Production

An automatic multi-head double-sided tape pasting machine is designed to make tape application more consistent while reducing repetitive manual operations. The feeding system moves cartons or sheet materials through the working area, while the adhesive heads apply tape according to the required position.

A high-friction conveyor belt helps maintain stable feeding and reduces unwanted movement during processing. This is particularly important for packaging materials that must stay aligned while passing through multiple adhesive positions.

Depending on the configuration, working widths can be available in different sizes, including common 850 mm and 1,250 mm configurations. This allows the equipment to be matched to different material formats instead of forcing every application into one fixed working range.

Tape changeover is another practical consideration for mixed-SKU production. On applicable configurations, the adhesive head uses a quick-release structure and can rotate approximately 45 degrees for easier adjustment or replacement. The changeover process can be completed in around 30 seconds under suitable operating conditions. This reduces the time spent on tape-head adjustment when production switches between different packaging requirements.

The equipment can also support different tape widths, with configurations covering approximately 5 to 60 mm depending on the adhesive head and machine specification. This gives operators more flexibility when processing packaging products that require different adhesive widths.

Accuracy and Output for High-Volume Packaging

Tape positioning is one of the most important factors in automated adhesive application. For our applicable machine configurations, placement accuracy can be maintained at approximately ±1.5 mm. The purpose is not simply to achieve a precise number, but to keep the adhesive strip positioned consistently along the required application area throughout continuous production.

Production speed also needs to be considered together with material type, tape specification, and application layout. Our automatic multi-head double-sided tape pasting machines can operate at speeds of up to 90 m/min under suitable conditions. Actual output depends on the product format and number of application positions, so line planning should be based on the complete production process rather than conveyor speed alone.

The output section is designed to help organize finished pieces as they leave the machine. A fish-scale style collection arrangement places products in an overlapping pattern, making it easier for operators to collect and stack them. This avoids creating a loose pile that needs to be reorganized manually before the next packaging stage.

Matching the Machine to Different E-Commerce Applications

The right configuration depends on what the packaging line actually produces.

For operations focused on standardized shipping cartons, stable feeding, repeatable tape placement, and continuous production are usually the main concerns. A suitable automatic multi-head double-sided tape pasting machine can reduce repetitive manual application and provide a more consistent adhesive process.

For plants handling multiple carton sizes or packaging formats, changeover flexibility becomes more important. Quick adhesive-head adjustment and different tape-width options allow the same equipment platform to adapt to a broader range of jobs.

The machine also needs to match the factory infrastructure. Applicable configurations may require an air supply of at least 6 bar and power around 4 kW on a three-phase electrical system. Exact requirements vary by machine model and configuration, so they should be checked against the plant's existing electrical and compressed-air capacity before installation. Floor space, machine dimensions, and material flow should also be considered when deciding where the equipment will be integrated into the production line.

Our Double-Sided Tape Pasting Machines for E-Commerce Packaging

As a manufacturer of double-sided tape pasting machines, we focus on the production details that directly affect daily operation: stable feeding, accurate tape placement, practical tape changeover, and organized product collection.

Our automatic multi-head double-sided tape pasting machines are designed for packaging applications that require repeatable adhesive positioning across continuous production. Different working widths, tape specifications, and machine configurations can be selected according to the material and application requirements.

For e-commerce shipping cartons, envelope-style packaging, document bags, and other products that require automated double-sided tape application, our equipment provides a production-oriented alternative to repetitive manual taping. We can also evaluate the carton size, material, tape width, application position, and required output to determine the appropriate machine configuration for a specific production line.
